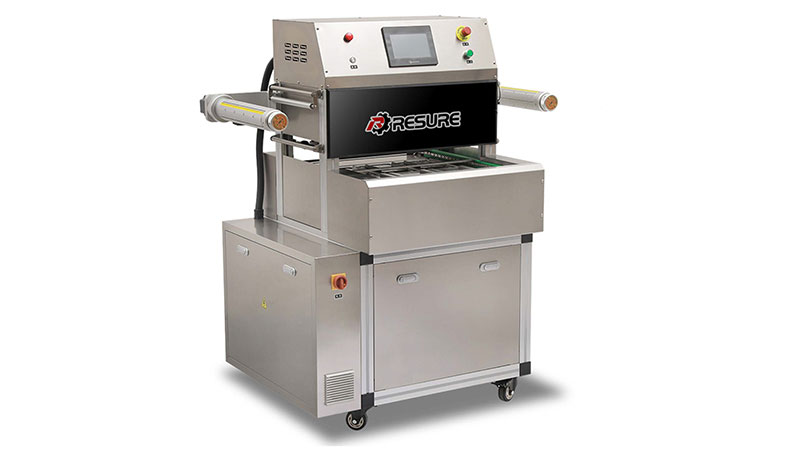

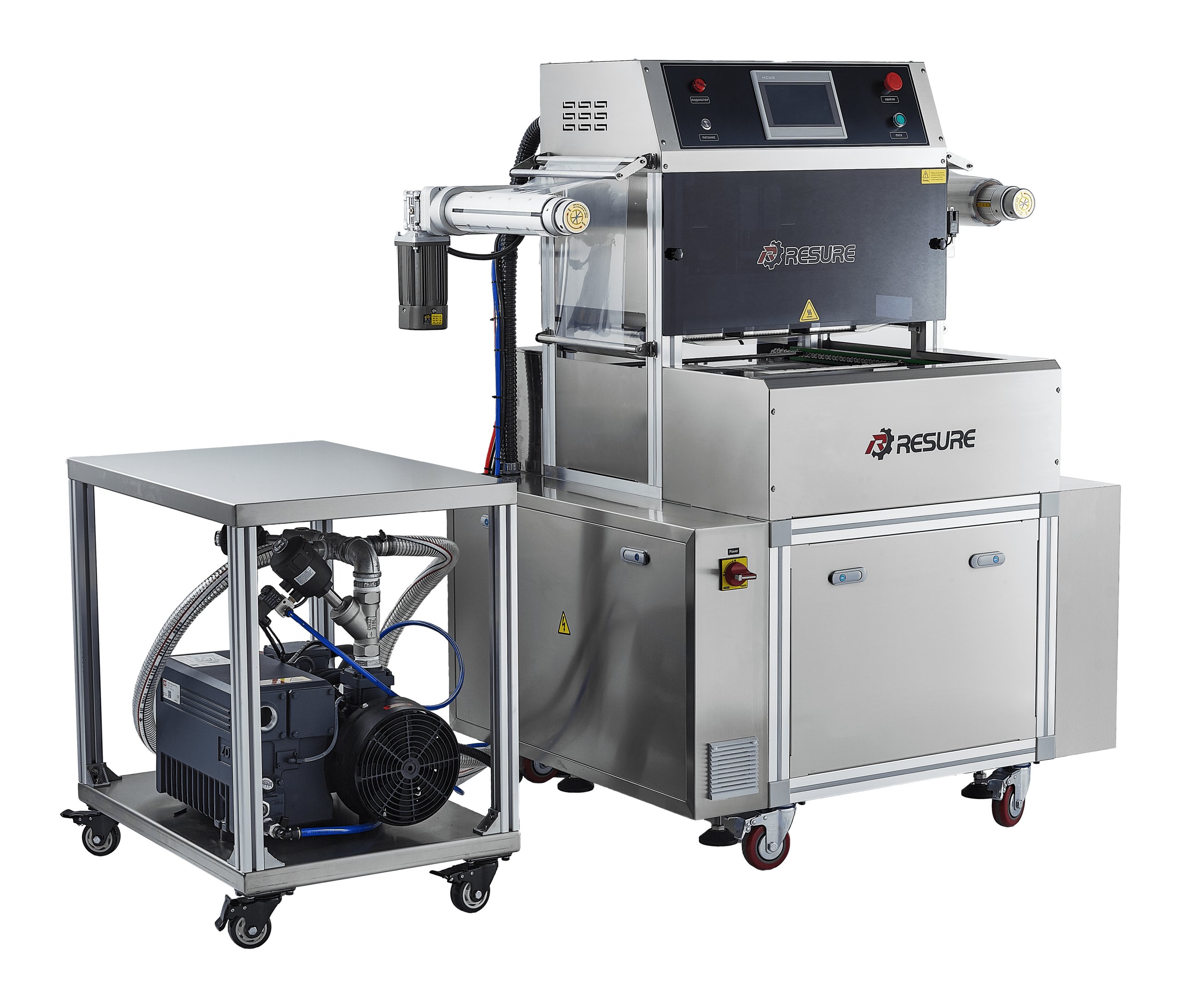

RS-MA63SCV Semi-continuous MAP Tray Sealing Machine
Highly flexible tray sealing machine with a small footprint, suitable for modified atmosphere packaging of fast food, fruits, vegetables, and meat.
Packaging Effect
Products Categories
Get A Free Quote
RS-MA58&63SCE(SCV) Data Sheet
| Model | RS-MA58SCV | RS-MA63SCV |
| Max. Film Width (mm) | 260 | 320 |
| Max. Film Diameter (mm) | 220 | 220 |
| Gas Replacement Rate | ≥99% | ≥99% |
| Packing Speed (times/min) | 6～7 | 6～7 |
| Capacity (trays/hour) output 3 | ≈900 | ≈900 |
| Vacuum Pump Displacement (m³/h) | 100 | 100 |
| Total Power (kW) | 5.5 | 5.5 |
| Air Pressure (MPa) | 0.6～0.8 | 0.6～0.8 |
| Weight (kg) | 310 | 360 |
| Dimensions (mm) | 1230×750×1400 | 1290×900×1400 |
RS-MA58&63SCE(SCV) Video
Details
Selecting high-quality 6061 aluminum molds to ensure stability and long lifespan.
Utilizing high-strength 304 stainless steel for the machine body to improve corrosion resistance and structural strength.
The machine uses an integrated line merging mechanism, allowing multiple trays to be conveyed sequentially when packaging multiple trays. This design prevents jamming and accumulation of trays, ensuring smooth and efficient operation.
Incorporating MCGS KunlunTongtai touch screens for a more intuitive user interface and enhanced user-friendliness
