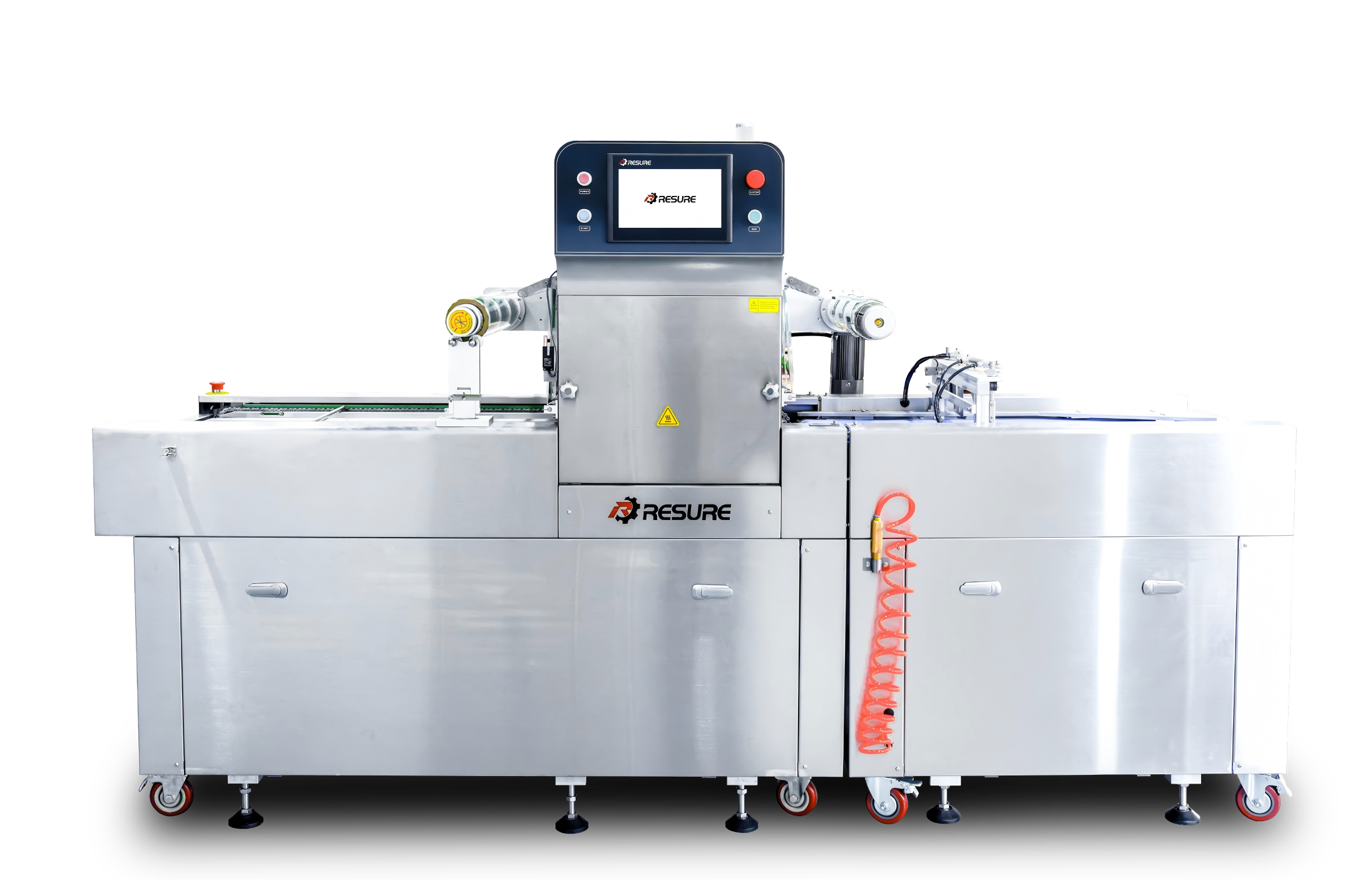

RS-VS63C Chain Type Vacuum Skin Tray Sealing Machine
RS-MA63 is a chain-type vacuum skin packaging machine with high production speed, suitable for packaging ready meals, meat and seafood, effectively extending their shelf life.
Packaging Effect
RS-VS63C Data Sheet
| Model | RS-VS63C |
| Max. Film Width (mm) | 630 |
| Max. Film Diameter (mm) | 220 |
| Packing Speed (times/min) | 5～6 |
| Capacity (trays/hour) output 3 | 900~1000 |
| Vacuum Pump Displacement (m³/h) | 200 |
| Total Power (kW) | 7.5 |
| Air Pressure (MPa) | 0.6～0.8 |
| Weight (kg) | 440 |
| Dimensions (mm) | 1820×900×1400 |
RS-VS63C Video
Integrated Line Merging Mechanism
The machine uses an integrated line merging mechanism, allowing multiple trays to be conveyed sequentially when packaging multiple trays. This design prevents jamming and accumulation of trays, ensuring smooth and efficient operation.
Film Rewinding and Unwinding Mechanism
Dual air shafts with servo control ensure film feeding accuracy within 1mm. The fully air-operated shaft system allows for easy film changes.
High-Precision Chain Drive Mechanism
The tray feeding mechanism utilizes a high-precision chain drive control system, ensuring smooth and reliable operation.
Simplified Tray Loading Mechanism
The tray loading mechanism features a slot design, allowing for smooth integration with both upstream and downstream packaging processes.
