RS8-400E Rotary Premade Pouch Packaging Machine
The rotary pre-made pouch packaging machine is a highly efficient and automated packaging solution designed for various types of pre-made pouches. It performs automatic pouch loading, opening, filling, and sealing operations. With a rotary working structure and multi-station coordination, the machine enables a continuous and stable packaging process. It is widely used in industries such as nuts, candies, snack foods, condiments, and pet food.
Packaging Effect
| Model | RS8-400E |
| Pouch Length(mm) | 150~600 |
| Pouch Width(mm) | 240~400 |
| Max.Filling Volume(ml) | 5000 |
| Packing Speed(BPM) | ≤30 |
| Total Power(Kw) | 3.62 |
| Air Consumption(m³/min) | ≥0.4 |
| Weight(kg) | 2500 |
| Dimensions(mm) | 2150×2020×1700 |
Pouch Loading Station
Supports multiple pouch picking methods, including top pick-up, horizontal pick-up, and bottom pick-up, allowing flexible adaptation to different pouch types to meet diverse customer needs.

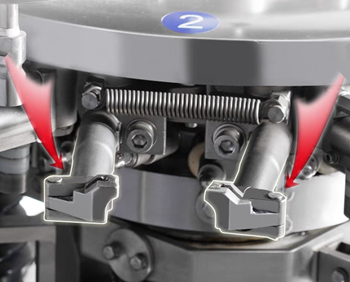

Pouch Gripping Station
Automatically adjusts the pouch clamp width based on the actual pouch size, ensuring firm grip without manual adjustment. Optional memory function available to save parameters for different products, enabling quick switching via the internal database.
Coding Station
Equipped with a high-quality ribbon coding machine (optional), offering fast-drying and high-speed printing for efficient traceability.
Pouch Opening Station
Suction cups with anti-slip treatment provide strong suction power to ensure pouch opening success. An air-blowing device assists the suction cup for efficient pouch opening. Optional intelligent detection system monitors the bag opening status in real time. If abnormal, the empty pouch is returned to the first station for reloading, minimizing waste and reducing costs.
Filling Station
Customized filling systems tailored to different products, with integrated pouch-support detection to ensure smooth material discharge. The system can intelligently determine the optimal filling timing. If unsuitable, the machine will pause filling and sealing automatically to avoid material loss and reduce costs.
Sealing Station
Sealing blades are specially treated to ensure fast sealing, followed by secondary pre-pressing for clear sealing patterns and tight closures. Optional third-sealing process available for enhanced seal quality.
Discharge Station
After sealing, the pouch automatically drops onto a conveyor belt for easy integration with downstream packaging processes.
Additional Features
● Wide Packaging Range:
Suitable for various shapes, states, and types of materials, such as rice, coarse grains, nuts, puffed foods, liquids, etc., meeting diverse packaging needs.
● Easy Operation:
PLC control with a touch screen human-machine interface (HMI) makes operation intuitive and user-friendly, reducing training time for operators.
● Oil-Free Vacuum Pump:
Equipped with an oil-free vacuum pump to avoid contamination of the production environment.
● Waterproof Design:
Designed with waterproof features for easy cleaning, lowering sanitation effort, and extending the machine’s service life.
● Hygienic Standards Compliance:
All parts in contact with the product are made of 304 stainless steel or other food-grade materials, ensuring hygiene and safety in accordance with GMP standards.
